RDS2 Drone Winch

Safe, precise automated delivery from altitude.

Payload Delivery System

A2Z RDS2

Drag to Rotate

Delivery Payload

Up to 10 kg
22 lb

Pickup Payload

Up to 5 kg
11 lb

No Landing Required

Deliver or retrieve
from altitude

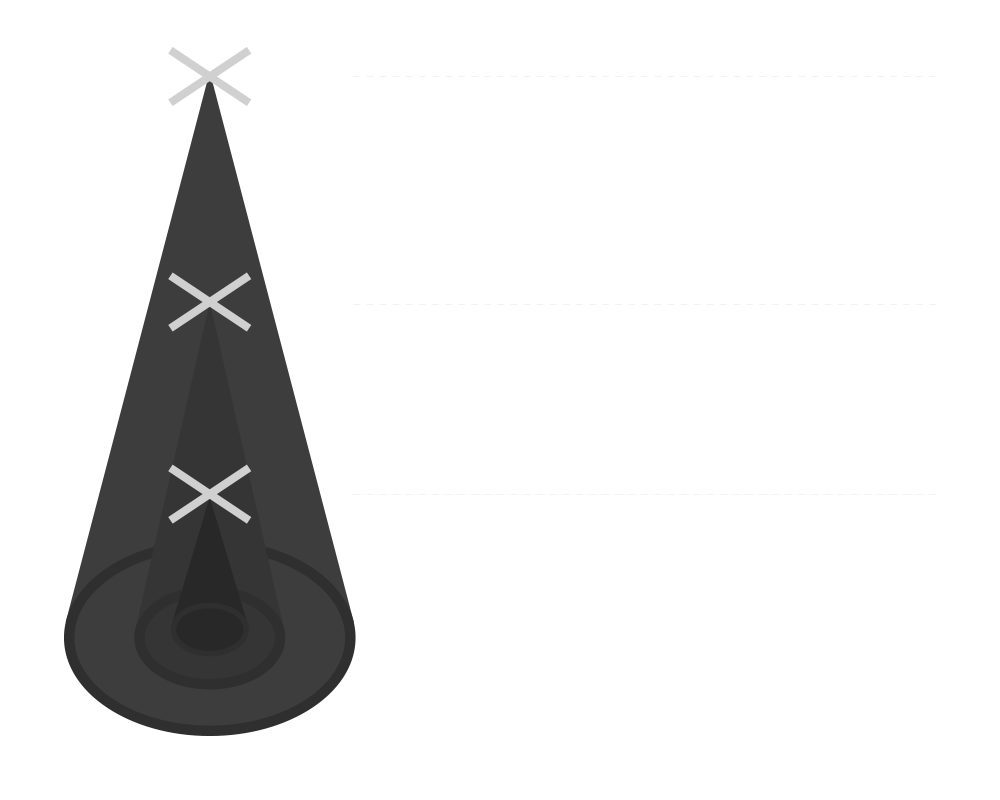

Deliver with Precision

Precise lowering and
reliable payload release

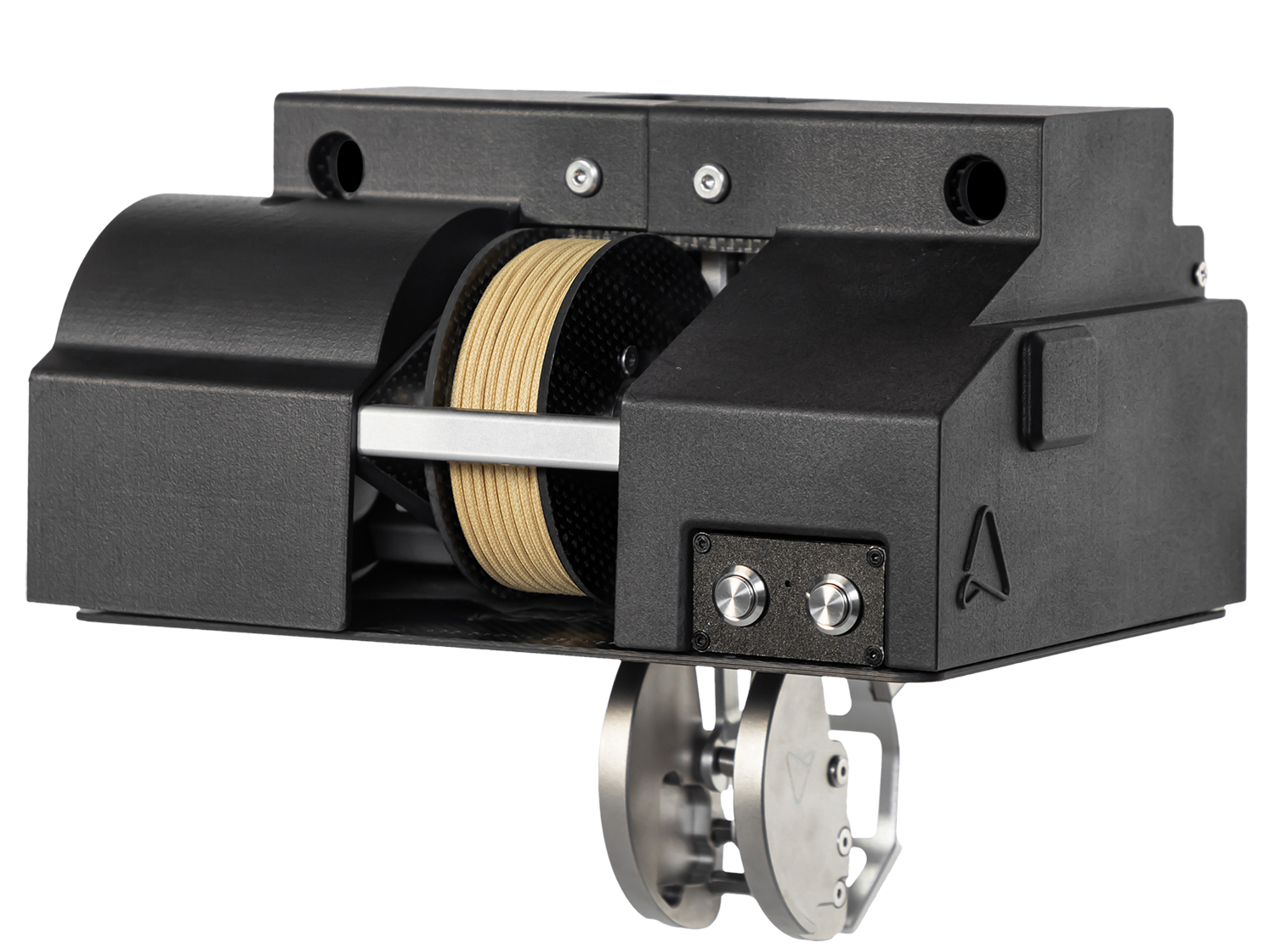

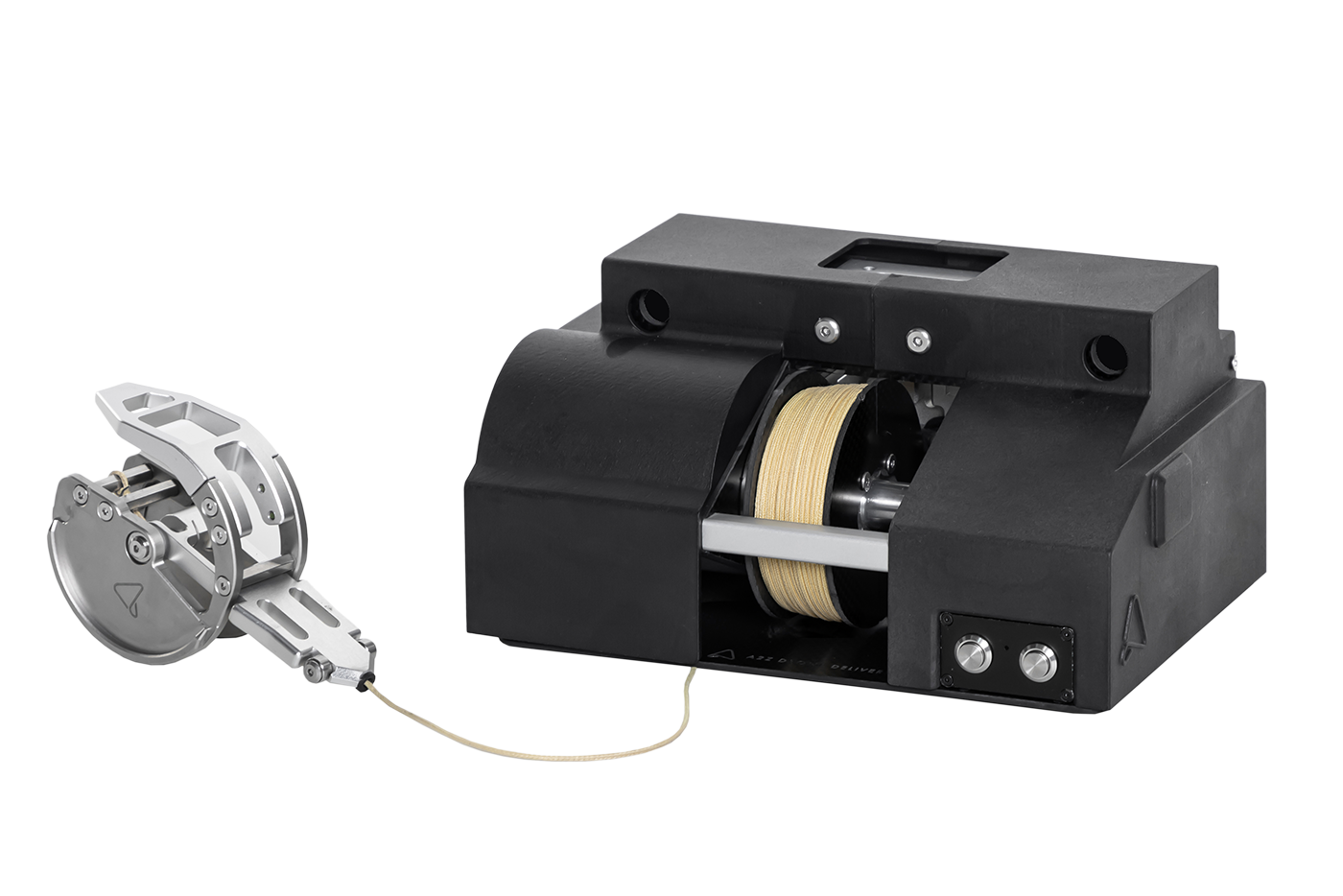

A2Z RDS2 Drone Delivery Winch

The A2Z RDS2 is a commercial drone winch system designed to safely deliver and retrieve payloads without requiring the aircraft to land. By lowering cargo from altitude, operators can save energy, avoid ground obstacles and access delivery locations that would otherwise be difficult or unsafe for drone operations.

Deliver Payloads Without Landing

The RDS2 enables drones to lower packages directly to the ground without landing, allowing deliveries in areas with vehicles, structures, vegetation, water, uneven terrain, or other obstacles. This expands the range of locations where commercial drone delivery missions can be performed safely and efficiently.

Pickup and Retrieval Operations

Beyond delivery, the RDS2 can retrieve payloads from remote locations without requiring the aircraft to land. This capability is valuable for logistics, maritime operations, emergency response, and infrastructure support missions.

Main Features

Deliver payloads up to 10 kg / 22 lb
Retrieve payloads up to 5 kg / 11 lb
No landing required for delivery or pickup operations
Saves battery life as the drone does not have to land and take off
Precision payload lowering and auto-release
Compatible with commercial delivery and logistics drones

Commercial Delivery Applications

Medical and healthcare logistics
Last-mile delivery operations
Mining operations
Industrial site-to-site transport
Remote facility resupply
Utility and infrastructure support
Ship-to-shore and shore-to-ship delivery

Technical Specifications

RDS2 Delivery Winch Specs

Plug-and-play with MAVLink-based aircraft systems, the RDS2 is built for precision payload delivery, pickup, and autonomous release operations.

Specification

Value

System Dimensions with Cover

9.84 × 5.71 × 4.13 in / 25 × 14.5 × 10.5 cm

System Weight with Cover

3.31 lb / 1.5 kg

Auto-Release Hook Weight with Ballasts

9.31 oz / 264 g

Manual Release Hook Weight

3.32 oz / 94 g

Tether Material

100% Braided Kevlar®

Tether Rated Tensile Strength

200 lb / 90.7 kg

Tether Diameter

0.059 in / 1.5 mm

Power Connector Type

XT30

Operating Voltage

6S / 12S

Peak Operating Current

30A

Communication Protocol

MAVLink via UART

Max Delivery Payload Capacity

22 lb / 10 kg

Max Reel-Up Payload Capacity

11 lb / 5 kg

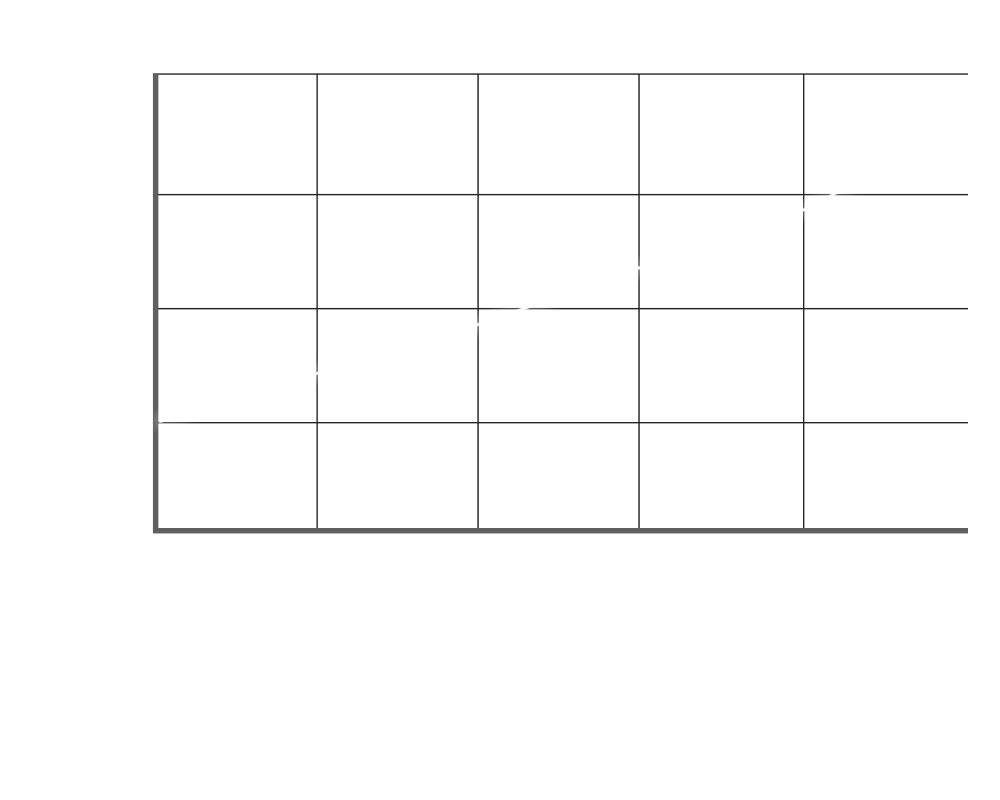

Max Delivery Height AGL

100 ft / 30.48 m

Request a Specs Sheet

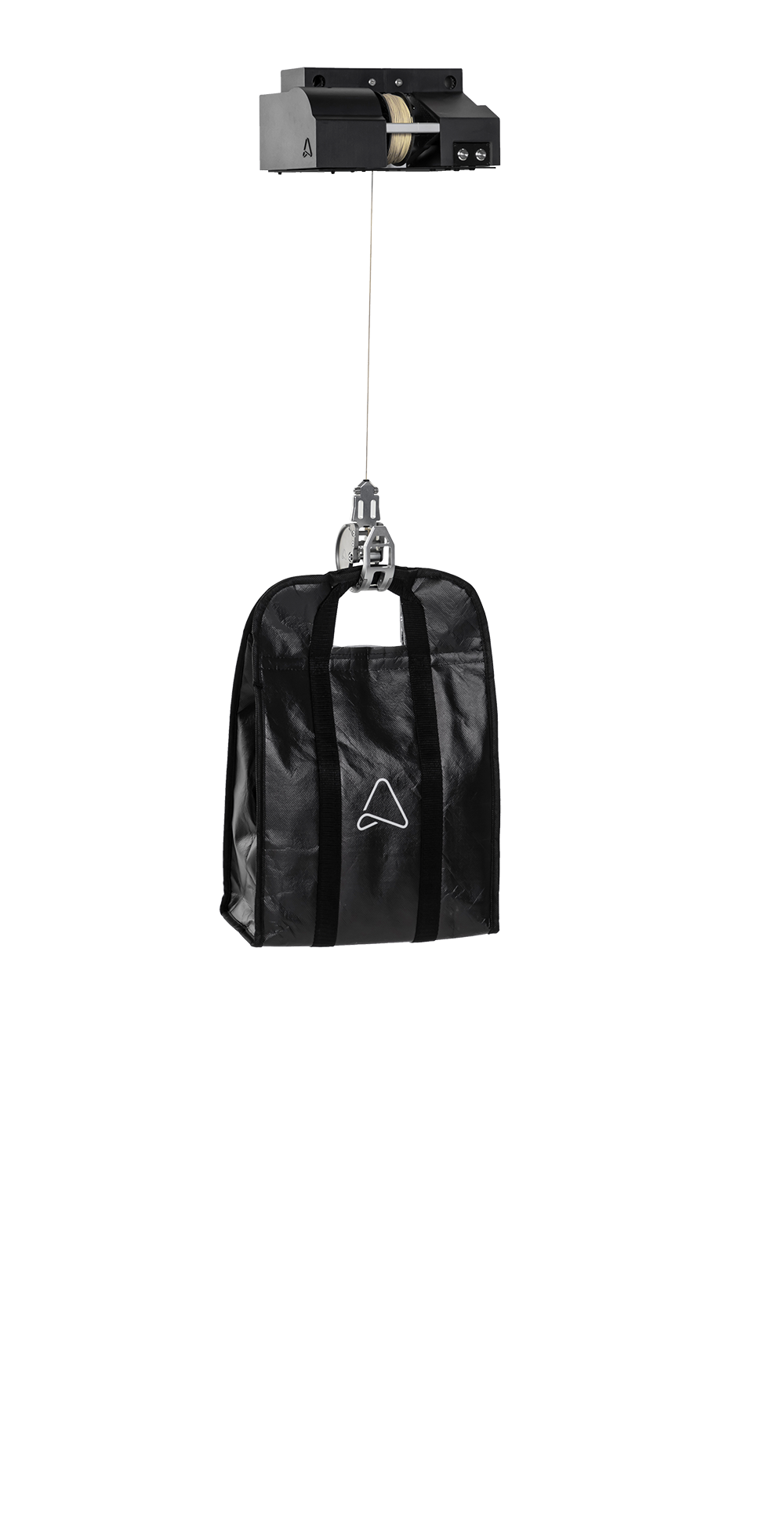

Auto Release Sequence

RDS2 Payload Release

The RDS2 lowers the payload to the delivery point, automatically releases the package, and retracts the tether so the aircraft can continue the mission without landing.

Step 01

Payload Lowered

No Landing Required

The RDS2 securely lowers the payload from altitude while the aircraft remains safely above the delivery area.

Step 02

Ground Contact

Controlled Placement

The package reaches the delivery point while the winch maintains controlled line management through the descent.

Step 03

Automatic Release

Auto-Release Hook

Once the payload is positioned, the hook releases the package without manual contact from the recipient or operator.

Step 04

Payload Separation

Hands-Free Delivery

The delivery bag remains securely on the ground as the release mechanism separates from the payload attachment point.

Step 05

Tether Clears Payload

Clean Separation

After release, the tether and hook move clear of the package, reducing the chance of dragging or disturbing the delivery.

Step 06

Ready For Next Mission

Repeatable Workflow

With the payload delivered and the hook clear, the RDS2 can retract the line so the aircraft can continue or return to base.

Video Gallery

A2Z RDS2 Drone Winch

See how the RDS2 enables drone delivery and retrieval without landing. From controlled payload lowering to automatic release, the system helps operators deliver to areas with uneven terrain, obstacles, water, or limited landing space.

RDS2 Delivery Winch Lower payloads from altitude without requiring the aircraft to land at the delivery point.

Payload Delivery From Altitude Deliver packages to locations where landing may be difficult, unsafe, or unavailable.

Pickup and Retrieval Retrieve payloads from remote or difficult-to-access locations without touching down.

Commercial Delivery Missions Support logistics, medical delivery, maritime transfer, utility operations, and remote resupply.

Safety Features

Safety Remains Our Top Priority

Built-in safeguards help support safer delivery missions by keeping the aircraft elevated, securing the payload, and giving operators emergency options when needed.

Emergency Abandon

Release the payload and tether to free the aircraft from sticky situations.

Deliver From Altitude

Keep spinning props away from people and property.

Passive Payload Lock

Payload remains secure in the event of a connection or power loss.

Gallery

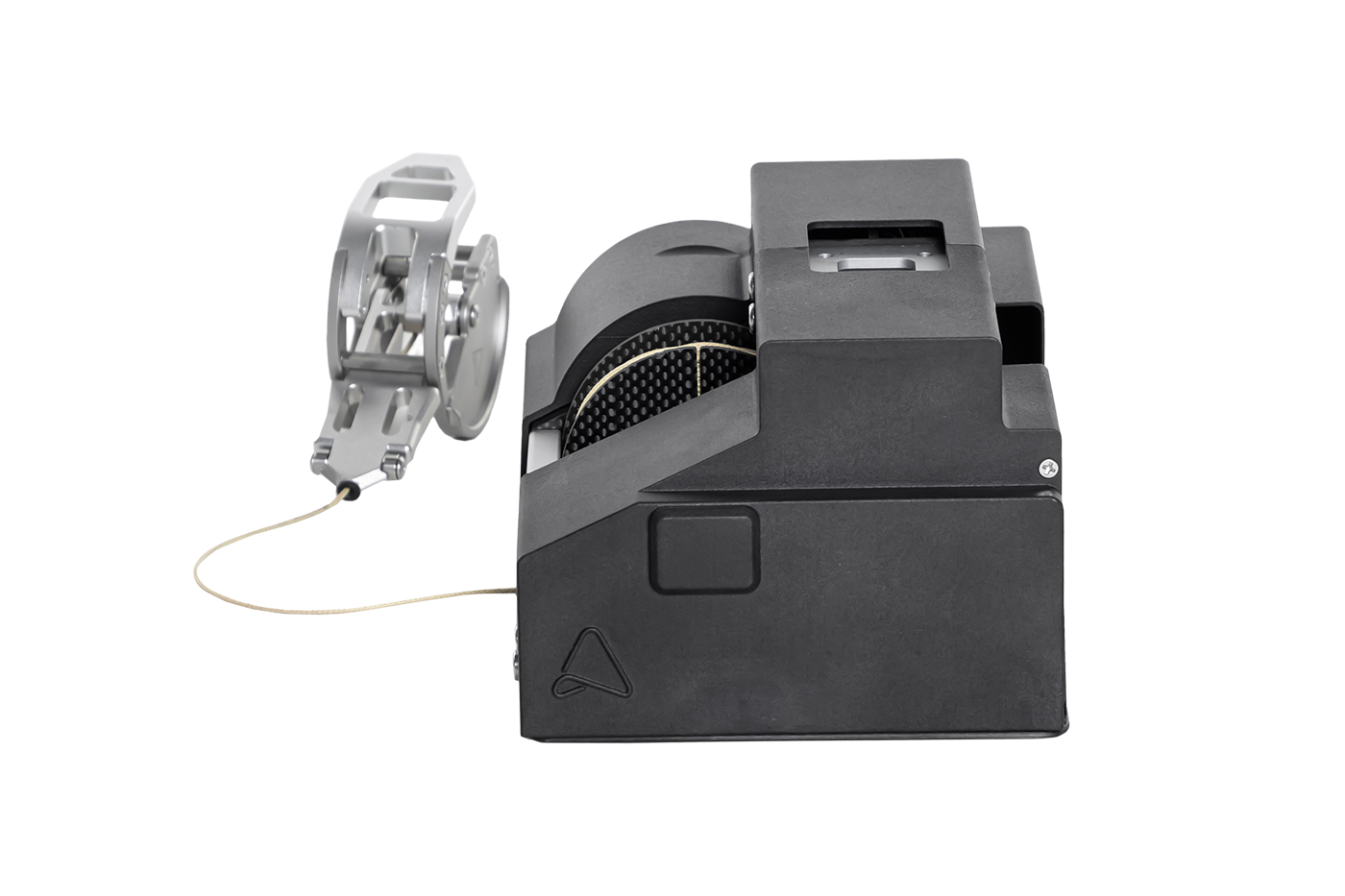

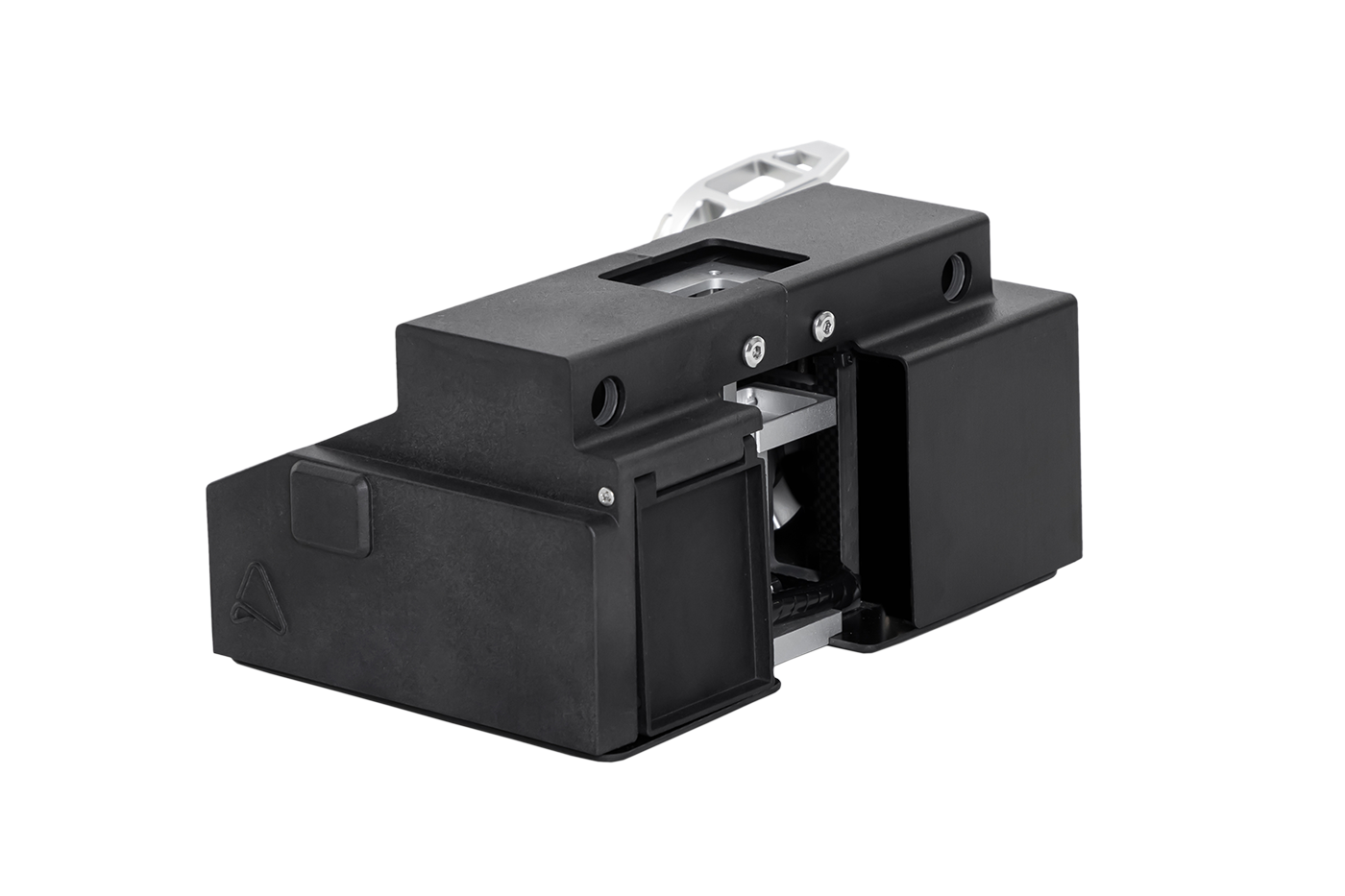

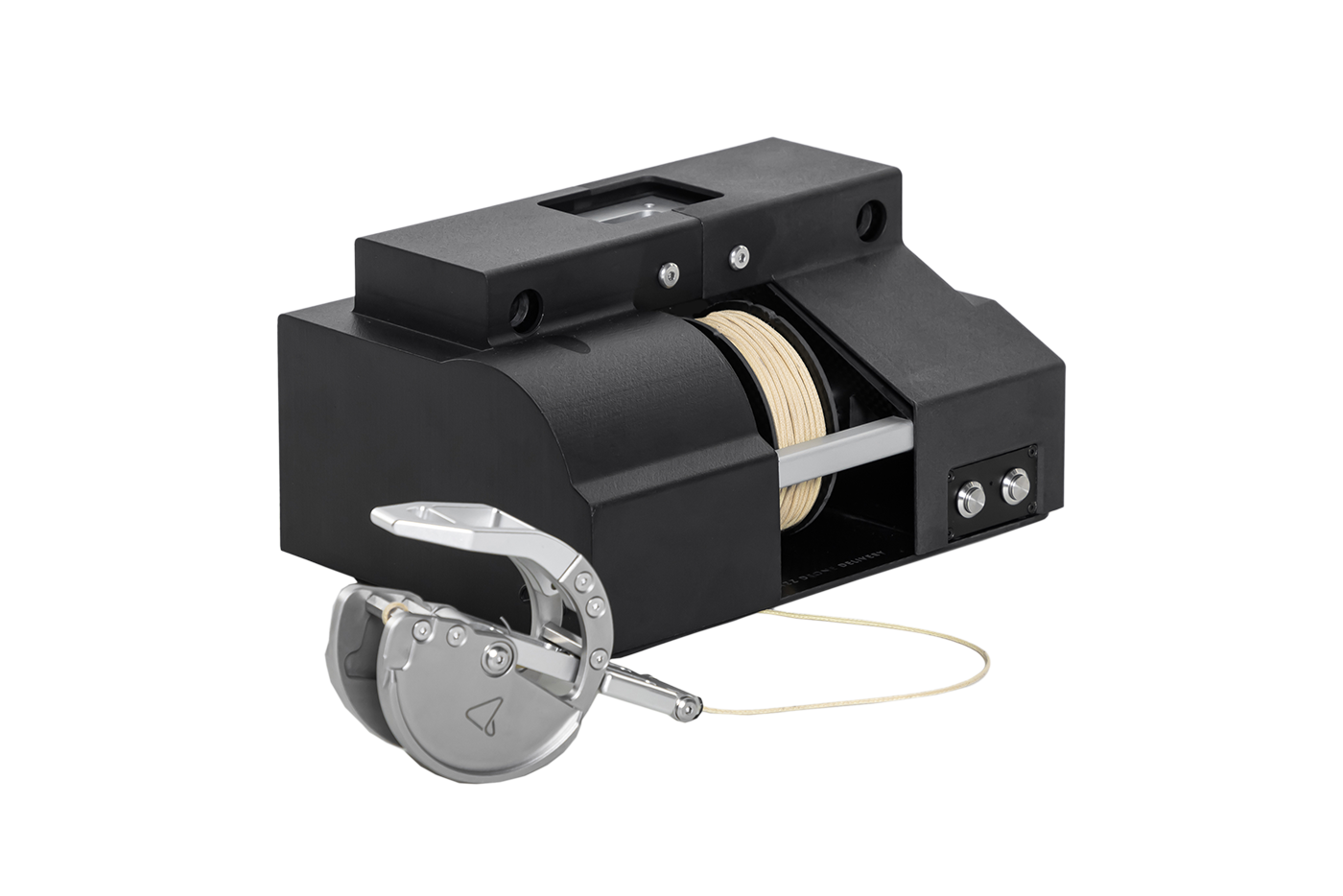

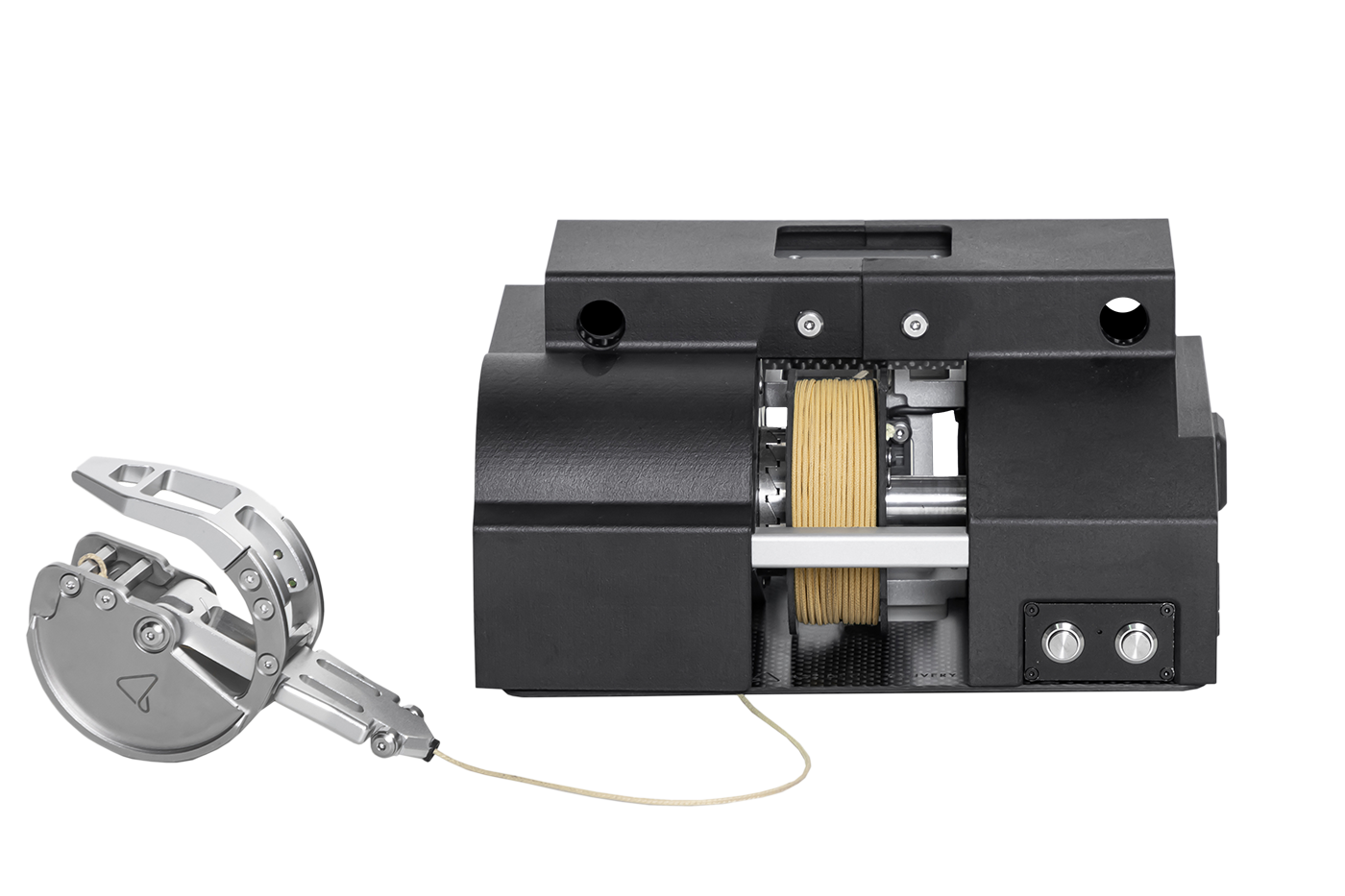

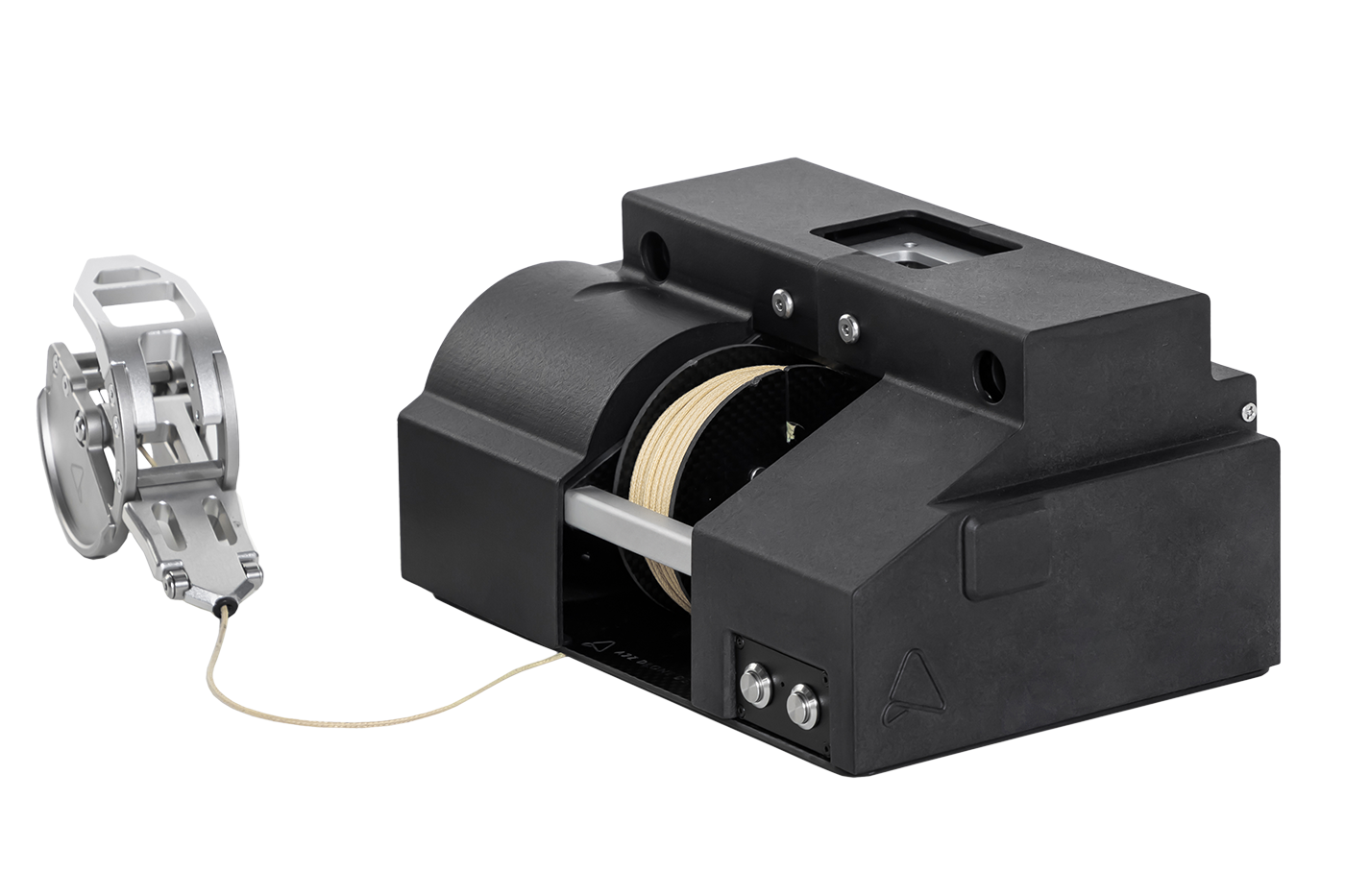

RDS2 Drone Winch Gallery

Applications

Built For Real-World Delivery Missions

The RDS2 supports payload delivery and retrieval across medical, maritime, emergency response, inter-site transport, and last-mile logistics operations.
